ONYX Spotlight — Targeted Red & Near-Infrared Light Therapy
The ONYX Spotlight is a high-powered, precision light-therapy system designed for targeted and regional treatment. Its compact, adjustable design allows users to focus red and near-infrared light directly on specific areas such as the knees, shoulders, neck, back, hips, feet, muscles, joints, scalp, or face.
Unlike a traditional full-body panel, the Spotlight concentrates its output into a focused treatment area while still providing coverage of more than 12 inches in circumference. It is ideal for home users, wellness professionals, athletes, massage therapists, spas, gyms, and recovery clinics.
Six-Wavelength LED System
The ONYX Spotlight combines six therapeutic wavelengths to support both surface-level and deeper-tissue applications:
-
630 nm red light: Skin health and surface-level tissue support
-
660 nm red light: Cellular energy, collagen production, and recovery
-
810 nm near-infrared: Deeper tissue and mitochondrial support
-
850 nm near-infrared: Muscles, joints, circulation, and recovery
-
910 nm near-infrared: Deeper localized treatment and tissue support
-
1060 nm near-infrared: Deep-reaching, warming recovery support
The LED array contains 60 high-powered 5-watt LEDs, including 27 red-light LEDs and 33 near-infrared LEDs. The different wavelengths work together to deliver broad-spectrum photobiomodulation for both superficial and deeper tissues.
Potential Wellness Applications
Consistent use may support:
- Muscle recovery and reduced post-workout soreness
- Temporary relief from minor joint and muscle discomfort
- Healthy inflammatory response
- Localized circulation
- Cellular energy production
- Skin tone, texture, and collagen support
- Wound and tissue-recovery processes
- Hair and scalp wellness
- General relaxation and recovery
Smart Controls and Treatment Modes
The Spotlight features a full-color touchscreen with adjustable settings for:
- Treatment time
- Light intensity
- Red and near-infrared wavelength groups
- Near-infrared pulsing from 0 to 40 Hz
- Custom treatment presets
- Built-in Smart Modes
Available Smart Modes include applications such as joint care, muscle recovery, skin and face, hair growth, sleep, and brain support. Red wavelengths remain continuous, while the near-infrared wavelengths can be pulsed.

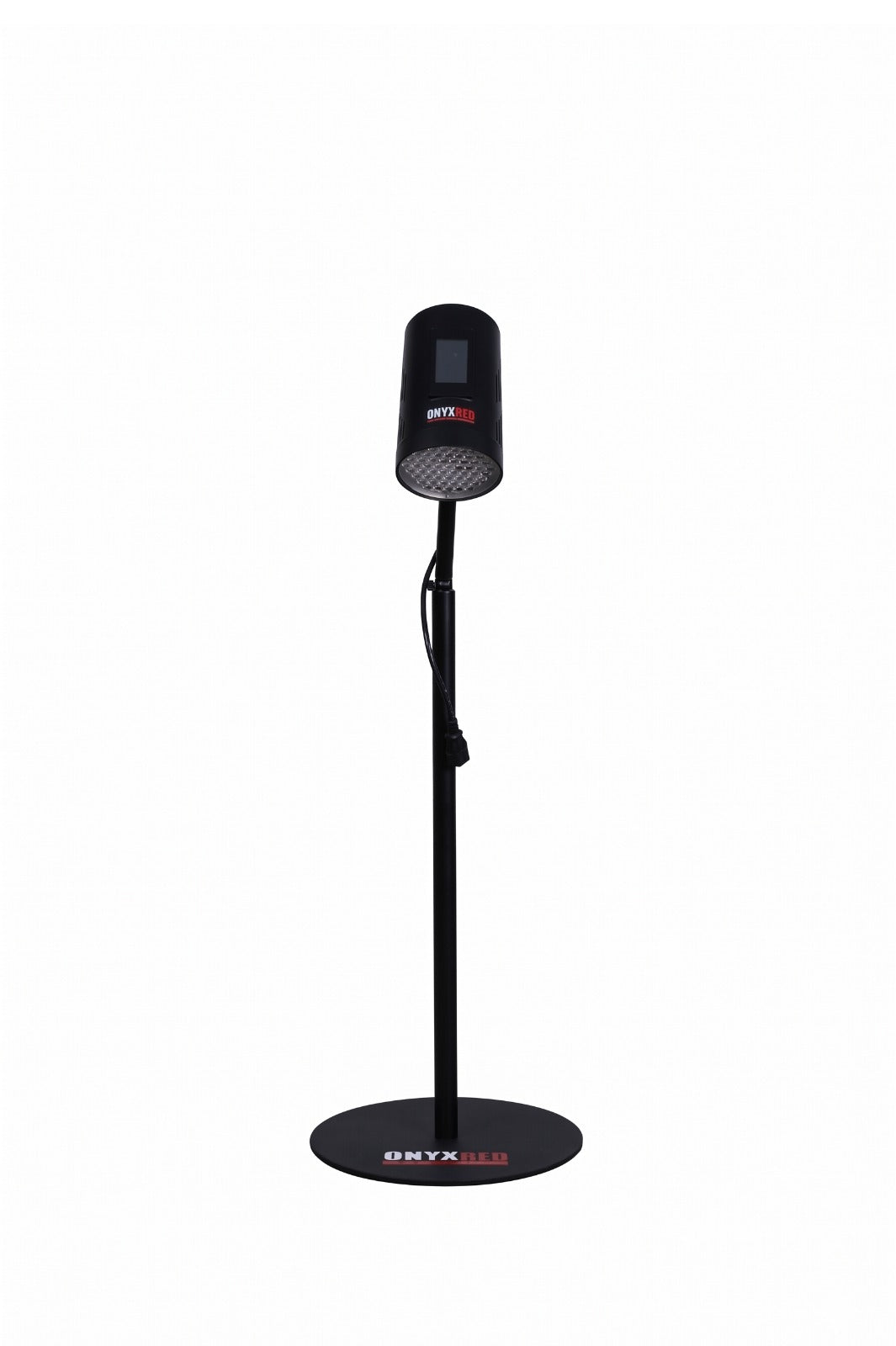

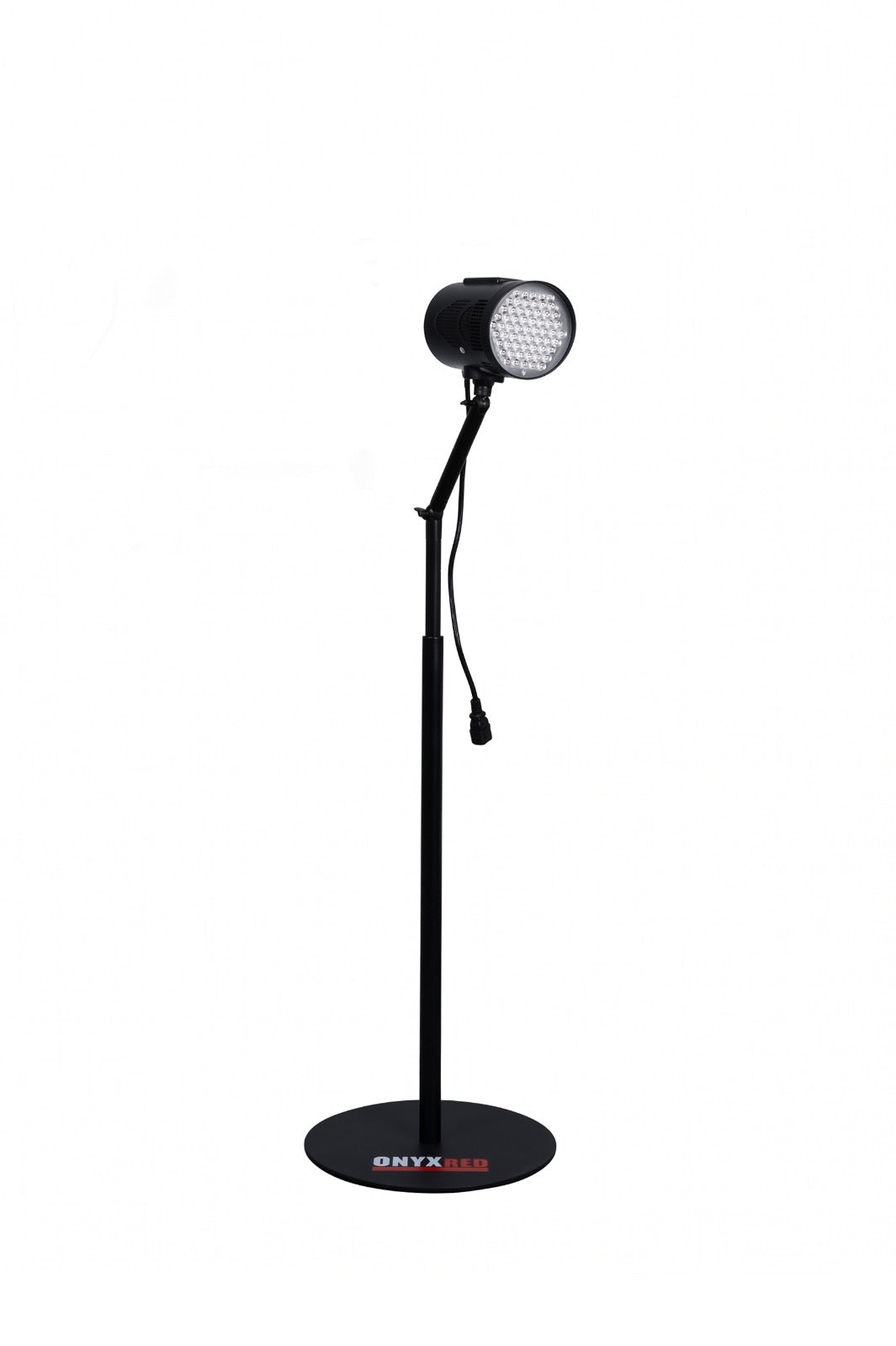

Adjustable Professional Stand
The telescoping floor stand provides flexible positioning for seated, standing, or lying-down treatments. The light head rotates 360 degrees and can be angled approximately 90 degrees in either direction, allowing precise placement over nearly any area of the body. Its weighted plate base provides stability while maintaining a compact footprint.
Technical Specifications
| Specification |
Details |
| LED configuration |
60 × 5-watt LEDs |
| Red LEDs |
9 × 630 nm and 18 × 660 nm |
| Near-infrared LEDs |
14 × 810 nm, 7 × 850 nm, 7 × 910 nm and 5 × 1060 nm |
| Rated electrical power |
100 watts |
| Input voltage |
AC 100–240V |
| Optical lens |
30-degree lens |
| Pulse range |
0–40 Hz, near-infrared LEDs only |
| Peak irradiance |
Approximately 204 mW/cm² at 12 inches |
| Irradiance at 18 inches |
Approximately 87 mW/cm² |
| Recommended distance |
Approximately 12–18 inches |
| LED lifespan |
Approximately 100,000 hours |
| Height |
Approximately 40–56 inches adjustable |
| Weight |
Approximately 11.7 pounds |
| EMF |
Marginal |
| Color |
Black |
| Best suited for |
Targeted and regional treatment |
The ONYX Spotlight is intended as a general wellness device and is not intended to diagnose, treat, cure, or prevent any disease. Results vary based on treatment distance, duration, consistency, tissue type, and individual response.
